Flywithsim

F16 Simulator

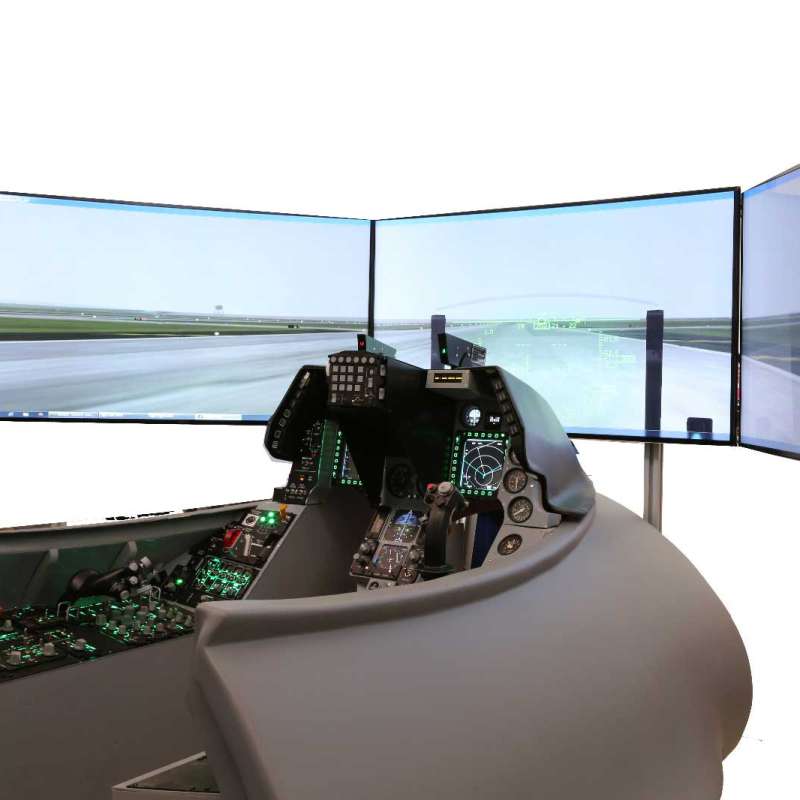

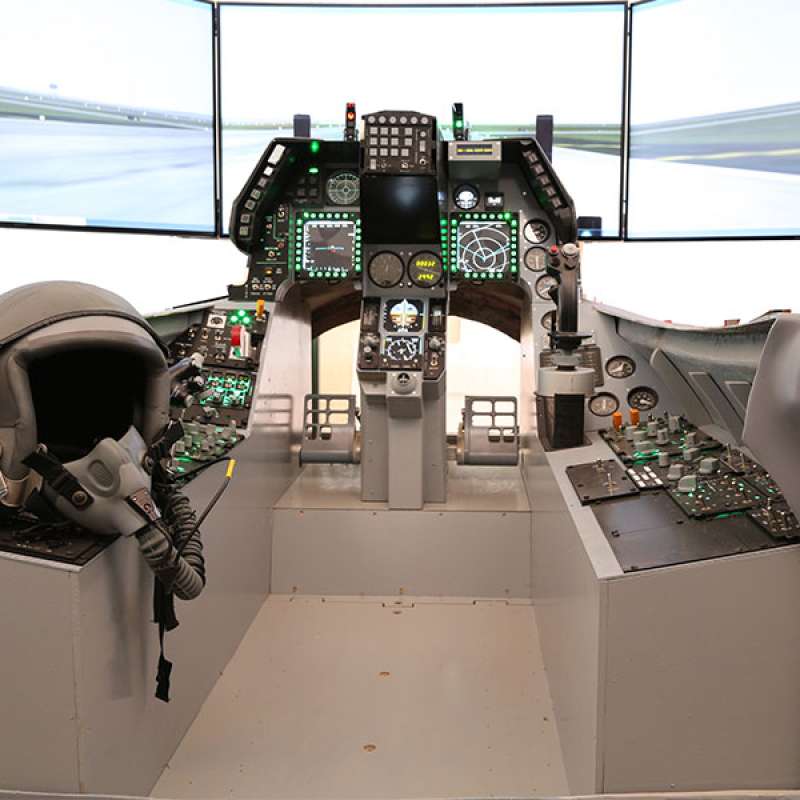

Our simulator, a faithful replica of the F-16 Block 52 model, features a cockpit with realistic dimensions. Equipped with a specially sourced Head-Up Display (HUD) and easily readable instruments, it provides a near-realistic flight experience. Our HOTAS replica responds with pressure sensors, just like the real thing. The entire outer shell is manufactured from fiberglass. All flight instruments operate analogously, and weapon systems and pods are integrated into the system. The system can be optionally integrated into a 180-degree curved screen using three projectors.

The simulator is controlled by a single computer. Since the computer is housed within the F-16 casing, it is very easy to transport and relocate. The entire system can be started and shut down with just one button. Our simulator can connect to other simulators via the internet or a local network, allowing for scenarios such as formation flying, aerial refueling, or dogfighting.



F16 Simulator

Display System

  • 3 HD Projectors & 220 Degrees Curved Screen
  • Live View with 15.000 Ansi Lumen
  • 220×40 Degrees FOV (Field of View)
  • Network Control Feature for all projectors
  • Automatic Edge Blending and Warping operations on screen

Cockpit & Flight Controls

Database

  • Terrain DB of Globe
  • 5 Airports update on request
  • Updated Route & Navaids according to selected airports
  • SID/STAR and TACAN Updated Informations
