Flywithsim

Boeing 737 FNPT II MCC

Boeing 737 Flywithsim Simulator

Muscle memory is one of the most important skills for pilots, because it helps them to know instantly what task to perform, even in sharp situations, without conscious effort.

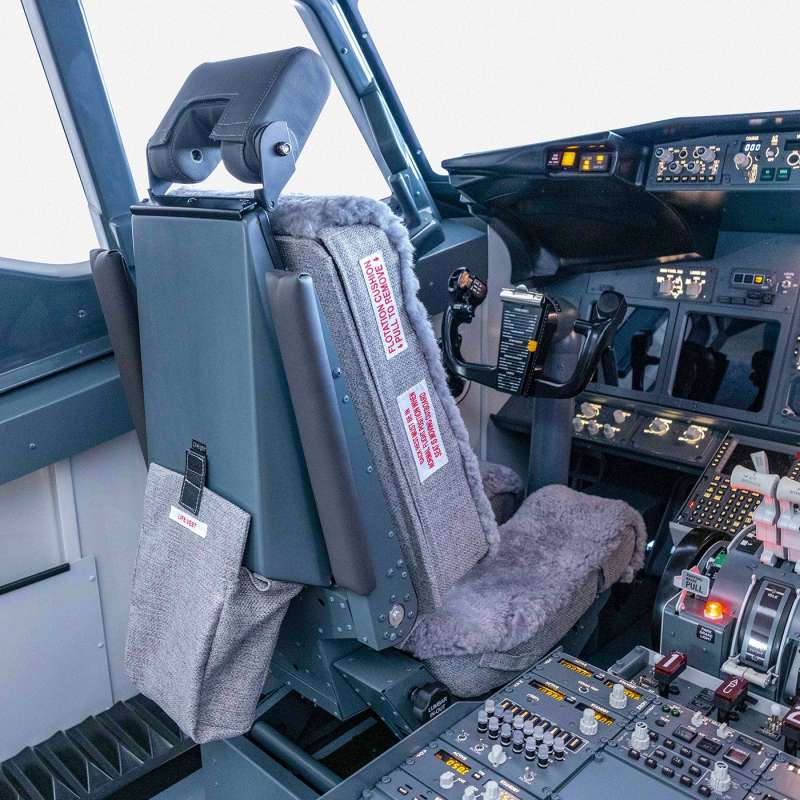

Therefore, we meticulously crafted the cockpit of our simulators to closely mirror that of the real Boeing 737, replicating every intricate detail, from the precise placement and forces of the controls to the tactile feedback of buttons and the subtle sound of each click.

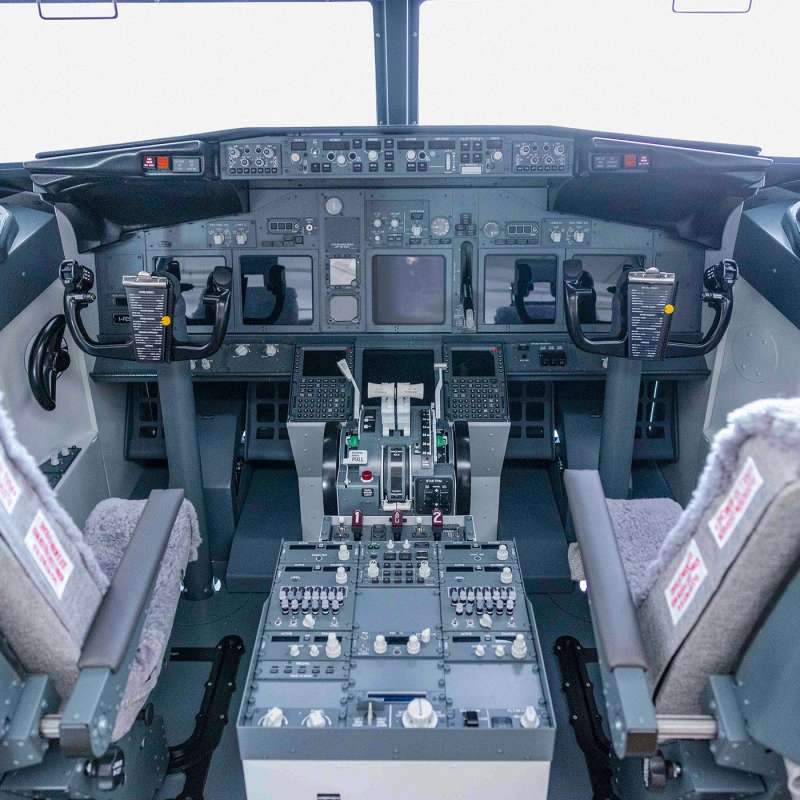

Cockpit

  • Fully enclosed flight deck
  • Rear section for Instructor Station and observer seats

Cockpit Includes

  • Main Instrument Panel (NG and MAX version are available)
  • Mode Control Panel (MCP)
  • EFIS Control Panel
  • Primary and secondary engine display
  • Dual Multi-Purpose Control Display Units (MCDUs)

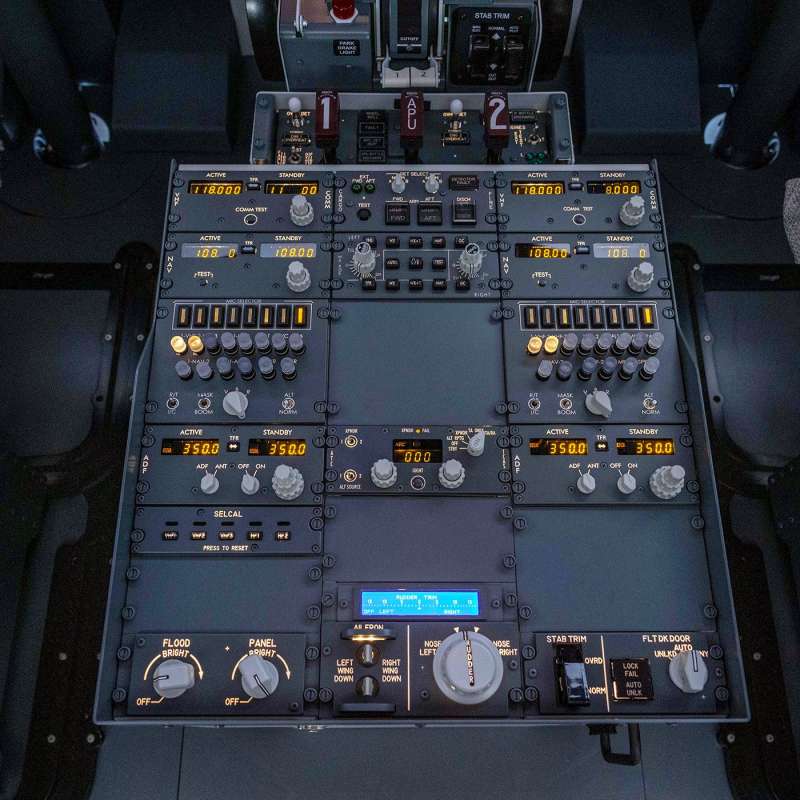

  • OEM Throttle Quadrant and Central Console

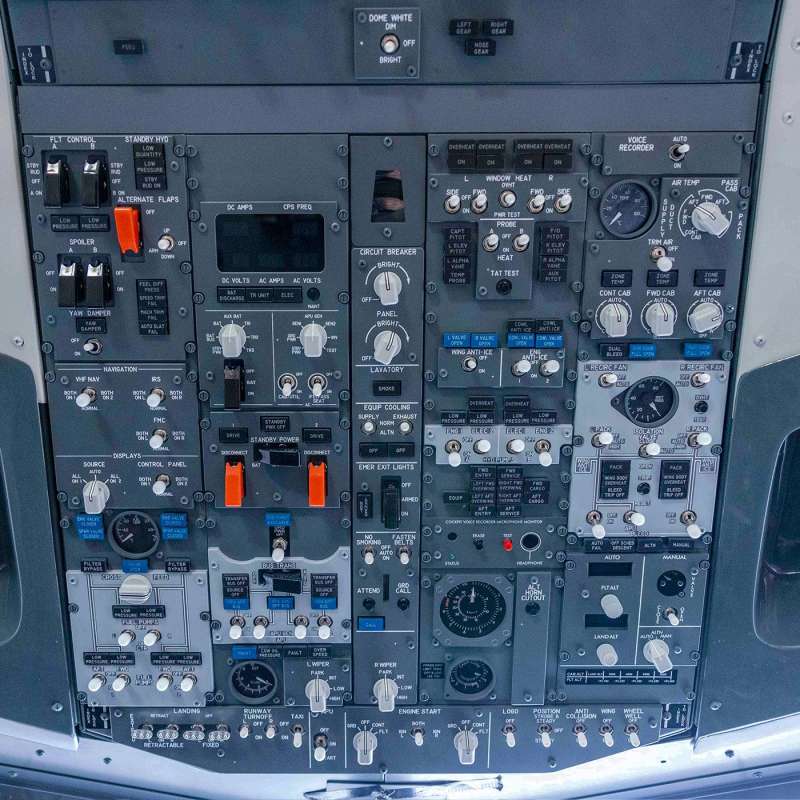

  • FWD and AFT Overhead Panels
  • Circuit Breaker Panel
  • Shell side panel, including mask holder
  • Tablet holder for iPads on both sides with USB socket

System Includes

  • Flight model for Boeing 737 NG with CFM engine or 737 MAX
  • Aircraft systems modeling including Fuel, Electrical, Hydraulic,
    Pneumatic, Pressurization, and Fire Protection System
  • Autopilot, Autothrust, and Flight Director Systems
  • Advanced autoflight including LNAV/VNAV, GLS, RNP approaches and autoland
  • Weather radar (WX), ATIS system
  • EGPWS, TCAS

Flight Controls

  • Dual-linked OEM Control Columns with control loading and stick shakers
  • Steering Tiller on CPT or FO side
  • Dual-Linked Rudder Pedals with control load and toe brakes developed by Flywithsim
  • Advanced fly-by-wire control laws and flight envelope protection modeling

Thrust

  • Motorised OEM Throttle Levers with reverse thrust
  • Auto throttle override
  • Motorised OEM Trim Wheels
  • OEM Speedbrake with auto deploy/stow
  • OEM Flap Lever with detents and with guarded positions

Intercom

  • Comprehensive intercom system with 3 OEM headsets
  • 2 OEM Masks
  • Overhead ACP

Instructor Station

  • Touch monitor interface
  • IOS software includes comprehensive simulation controls including aircraft positioning, dynamic weather interface, flight-path map, and extensive system failures

Visual System

  • Direct projected
  • High-definition laser projectors
  • 200° × 45° field of view
  • 6,5 m diameter cylindrical projection (optimal to minimize parallax error)

Sound System

  • Surround speakers for realistic engine and environmental sound effects
  • Cockpit alerts and warnings including call-outs, configuration warnings EGPWS warnings and TCAS alerts

Navigation

  • Worldwide generic terrain database
  • Navigational database including airways, SIDS, STARS and Approaches
  • 5 reference airports based on EASA requirements (other airports available as an additional option)

BOEING 737
